3 Pin Vs 5 Pin Dmx. Dmx 3 Pin Connectors This article explains how to made adaptors between 3 and 5 pin DMX XLR connectors. The 3 vs 5 pin standard designation was mainly to avoid confusion between the two types of cables, and to prevent audio and DMX from being cross connected.

Pin 2 - DMX - Pin 3 - DMX + Pin 4 - Alt DMX - Pin 5 - Alt DMX + As far as practical differences are concerned, you will probably find 3 Pin XLR's are cheaper but that's about it. The DMX specification allows for two completely separate data channels over the one 5 pin connector, but often you'll find the cable manufacturers cheap out and only provide a single channel

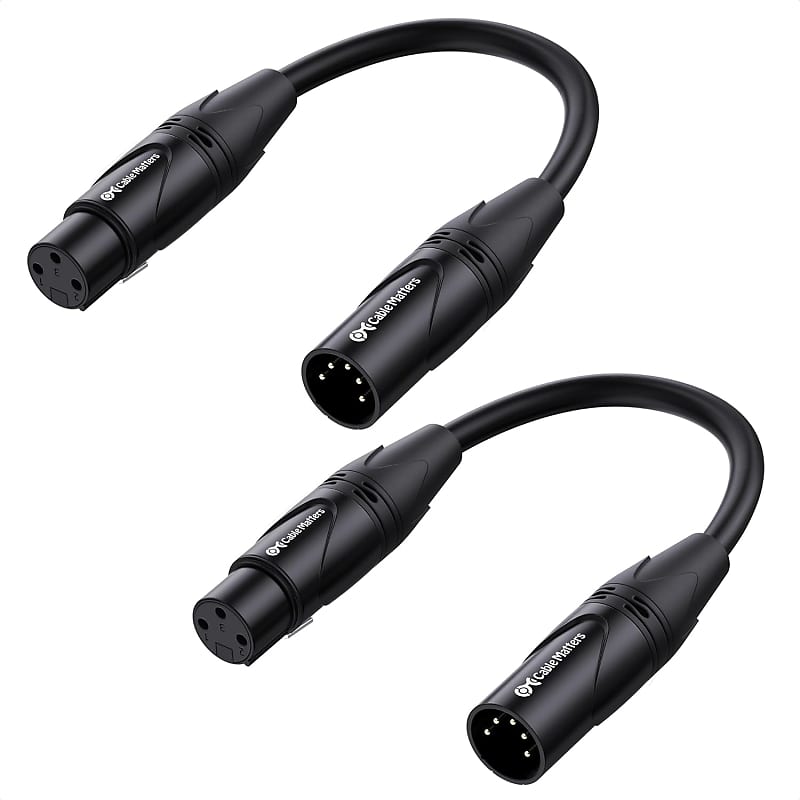

DMX Adapter 3 Pin XLR to 5 Pin XLR SIRS Electronics, Inc.

Pin 2 - DMX - Pin 3 - DMX + 5 Pin XLR's: Pin 1 - Common The 3 vs 5 pin standard designation was mainly to avoid confusion between the two types of cables, and to prevent audio and DMX from being cross connected. Traditionally, 3 pin connectors have been the domain of audio and 5 pin XLR connectors have been the domain of DMX control for lighting

5 Pin VS 3 Pin DMX. Most lighting we will ever see doesn't use that capability so a 5 pin connector isn't necessary 5 pin DMX allows for a 2nd communication channel for the devices to talk back to the controller

American DJ Accucable 3pin DMX Cable (5') AC3PDMX5 B&H Photo. The 3 vs 5 pin standard designation was mainly to avoid confusion between the two types of cables, and to prevent audio and DMX from being cross connected. There is no difference between using 3-Pin or 5-Pin for DMX on a technical level
